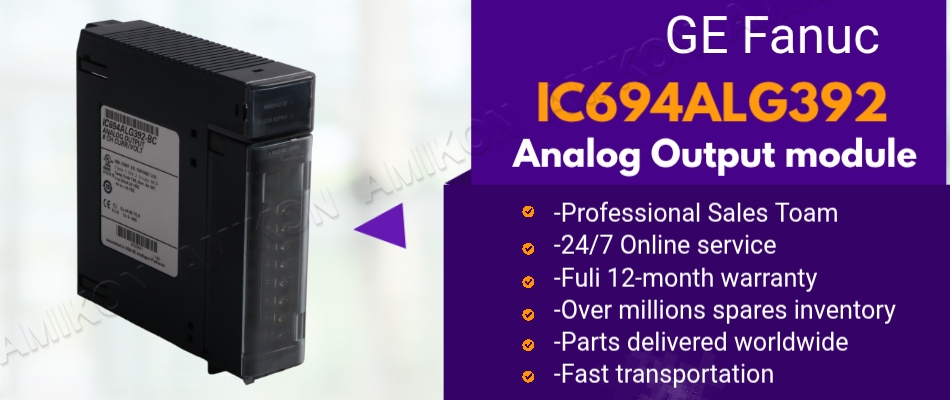

What Is the GE Fanuc IC694ALG392 Analog Output Module and What Does It Do?

The IC694ALG392 is a PACSystem RX3i Programmable Automation Controller (PAC) module. This module is an analog output module which feature Eight (8) single-ended output channels. This module is able to deliver a variety of output signal ranges such as 0 to +10 volts (unipolar), 10 to +10 volts (bipolar), 0 to 20 milliamps, and 4 to 20 milliamps. Depending on the configured output type, the module resolution ranges from 15 to 16-bit. Each of the channels are individually updated, within 8 ms interval.

When operating in Current mode, the module is provided with internal fault detection such as open wire fault. This helps user and maintenance to monitor which channel is experiencing loose wiring or a completely open or removed wire. This fault is seen on the CPU diagnostics. This module supports holding of the last known value interruption of system power. This safety feature prevents unwanted behavior of the system in most industries. Similarly, the values may also reset to zero, depending on the configuration.

This output module is typically used in analog control loops where modulating control is needed aside from ON/OFF control. This analog output module may be linked internally to the controller’s PID controller for automatic control and manual loaders whether hardwired or software based for manual mode of control. Additionally, it is also possible to use this module to re-transmit signals and interface with process data loggers, measuring instruments, totalizers, converters, isolators and other instruments and devices that are compatible with the output signals of this module. This module may be installed to any available slot of an existing RX3i PACSystem.

Technical specifications for IC694ALG392

Manufacturer：GE Fanuc Emerson

Product Line：RX3i PacSystem

Part Number：IC694ALG392

Weight：0.69 lbs (0.31 kg)

Number of Output Channels：1 to 8 selectable, single-ended outputs

Output Current Range：4 to 20 mA and 0 to 20 mA

Output Voltage Range：0 to 10V and -10 V to +10V

Update Rate：8 Milliseconds

External Supply Voltage Range：20 VDC to 30 VDC

External Power Supply Voltage Ripple：10% (maximum)

Why Is the IC694ALG392 Important for Modern Process Control Applications?

Key benefits include:

High-accuracy analog output performance

Improved process stability and repeatability

Reduced signal distortion and noise interference

Seamless integration with GE Fanuc PLC systems

Reliable operation in demanding industrial environments

Where Is the GE Fanuc IC694ALG392 Commonly Used?

The IC694ALG392 is widely deployed across various industries that rely on automated process control and monitoring.

Typical applications include:

Power generation facilities

Oil and gas processing plants

Water and wastewater treatment systems

Chemical manufacturing operations

Pharmaceutical production facilities

Food and beverage processing plants

Pulp and paper manufacturing

Which Features Make the IC694ALG392 Stand Out from Other Analog Output Modules?

Several advanced features contribute to the popularity of the IC694ALG392 among automation engineers and system integrators.

Notable features include:

Multiple isolated analog output channels

High-resolution digital-to-analog conversion

Support for industry-standard current and voltage signals

Diagnostic functions for system monitoring

Compact design for efficient cabinet installation

Compatibility with GE Fanuc PACSystems and Series 90-30 platforms

How Can Engineers Maximize the Performance of the IC694ALG392?

Proper installation and configuration are critical for achieving optimal performance from the IC694ALG392.

Recommended best practices include:

Verify Signal Requirements

Ensure output signal ranges match the requirements of connected field devices.

Follow Proper Wiring Procedures

Use shielded cables and appropriate grounding techniques to minimize electrical interference.

Perform Calibration Checks

Regularly verify output accuracy to maintain process precision.

Monitor Diagnostic Information

Utilize PLC diagnostics to identify potential issues before they affect production.

Plan for Future Expansion

Design the control architecture with scalability in mind to accommodate future operational needs.

The GE Fanuc IC694ALG392 Analog Output Module is a dependable solution for industrial applications that require accurate and stable analog signal generation. Its compatibility with GE Fanuc control platforms, high-performance output capabilities, and robust industrial design make it an excellent choice for process control systems across multiple industries. Whether used in power generation, manufacturing, water treatment, or chemical processing, the IC694ALG392 helps organizations achieve greater control accuracy, operational efficiency, and long-term system reliability.
